Description

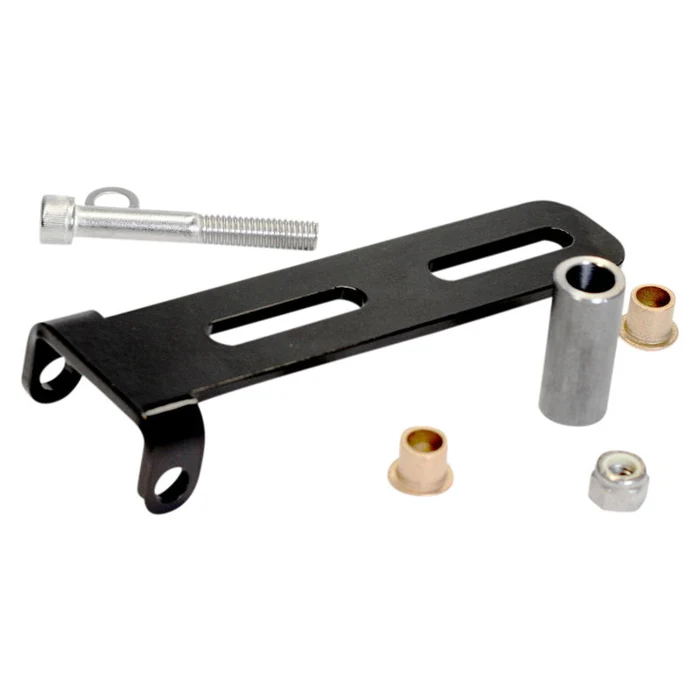

TC-Bros, Weld on Solo Seat hinge
The TC pivot bracket is made from one piece of 3/16″ steel for the ultimate in strength and simplicity.
Unlike welded pivot brackets, the one piece design eliminates the possibility of a cracked seat pivot bracket caused by a failed weld.
It also makes for a very low profile that looks great on just about every aftermarket spring style solo seat made.
The long slotted holes permit a wide range of fitments and allow for adjustability.
The finish on the bracket is black powdercoat for durability.
This simple design also permits the weld-on mount to be mounted to either a round frame tube or a flat surface without a standoff and without interference to the pivoting action because the weld-on pivot mount is slightly larger in diameter than the rest of the components.
The weld-on pivot mount is raw finish steel and ready to weld.
The 3/8″ hex socket cap bolt is stainless steel, as well as the washer and nylock nut so they will never rust.
The replaceable bushings are oil impregnated bronze for a squeak free ride and very long life. Fitment possibilities are nearly endless.
If you have a solo seat with springs on it, this bracket will probably fit.
These Hinges are distributed by TC-Bros.
Check out all the other TC-Bros we sell right HERE!!!, or check their catalog right HERE!!!
Can not find the correct parts? Contact us through the contact page so we can find the right part for you or check all the online catalogs on the bottom of the homepage
RJC-Choppers, Quality over Quantity
